vart::VideoFrameImplBase Class Reference

Abstract base class for video frame implementation used by VideoFrame. More...

#include <vart_videoframe_impl_base.hpp>

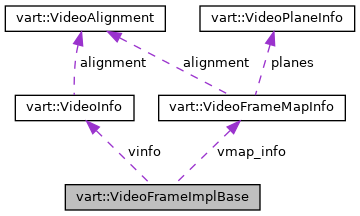

Collaboration diagram for vart::VideoFrameImplBase:

Public Member Functions
	VideoFrameImplBase ()=delete
	VideoFrameImplBase (std::shared_ptr< Device > dev)
	VideoFrameImplBase() - Constructor that takes device instance as an input. More...
virtual	~VideoFrameImplBase ()
	Virtual destructor to ensure proper cleanup of derived implementations. More...
virtual const VideoFrameMapInfo &	map (DataMapFlags map_flags)=0
	map() - Maps video frame data to user space More...
virtual void	unmap ()=0
	unmap() - Unmaps video frame data from user space. More...
virtual const VideoInfo &	get_video_info ()=0
	get_video_info() - Retrieves the video frame information from the current frame More...
virtual std::shared_ptr< Device >	get_device_handle ()=0
	get_device_handle() - Retrieves the device handle associated with the current frame More...
virtual int	export_buffer () const =0
	export_buffer() - Export the video frame buffer as a dma-buf file descriptor. More...

Protected Attributes
VideoInfo	vinfo
VideoFrameMapInfo	vmap_info
std::shared_ptr< Device >	device

Detailed Description

Abstract base class for video frame implementation used by VideoFrame.

Note

Applications should use vart::VideoFrame rather than this type directly, unless extending or implementing a new backend.

Constructor & Destructor Documentation

VideoFrameImplBase() [1/2]

vart::VideoFrameImplBase::VideoFrameImplBase ( )

delete

VideoFrameImplBase() [2/2]

vart::VideoFrameImplBase::VideoFrameImplBase ( std::shared_ptr< Device >  dev )

inline

VideoFrameImplBase() - Constructor that takes device instance as an input.

Parameters

dev	Device instance

~VideoFrameImplBase()

virtual vart::VideoFrameImplBase::~VideoFrameImplBase ( )

inlinevirtual

Virtual destructor to ensure proper cleanup of derived implementations.

Member Function Documentation

export_buffer()

virtual int vart::VideoFrameImplBase::export_buffer ( ) const

pure virtual

export_buffer() - Export the video frame buffer as a dma-buf file descriptor.

Returns

File descriptor representing the exported buffer. Implementations may return -1 to indicate that exporting is not supported for this memory type.

get_device_handle()

virtual std::shared_ptr<Device> vart::VideoFrameImplBase::get_device_handle ( )

pure virtual

get_device_handle() - Retrieves the device handle associated with the current frame

Returns

Returns the device handle associated with the current frame.

get_video_info()

virtual const VideoInfo& vart::VideoFrameImplBase::get_video_info ( )

pure virtual

get_video_info() - Retrieves the video frame information from the current frame

Returns

Returns information related to video frame

map()

virtual const VideoFrameMapInfo& vart::VideoFrameImplBase::map ( DataMapFlags  map_flags )

pure virtual

map() - Maps video frame data to user space

Parameters

[in]

map_flags

Flag used to indicate mode of memory mapping. May combine bits from DataMapFlags.

Returns

Const reference to the cached VideoFrameMapInfo. Implementations should refresh vmap_info on each successful call.

unmap()

virtual void vart::VideoFrameImplBase::unmap ( )

pure virtual

unmap() - Unmaps video frame data from user space.

Member Data Documentation

device

std::shared_ptr<Device> vart::VideoFrameImplBase::device

protected

vinfo

VideoInfo vart::VideoFrameImplBase::vinfo

protected

vmap_info

VideoFrameMapInfo vart::VideoFrameImplBase::vmap_info

protected

---

The documentation for this class was generated from the following file:

• vart_videoframe_impl_base.hpp
